3000W 3232Wh Portable Power Station with 51.2V LiFePO4 Battery, MPPT Solar Charging and UPS Function

  • Model: PY-D530 / PY-D530-3000W-63Ah
  • Battery Type: LiFePO4
  • Battery Capacity: 3232Wh (51.2V / 63Ah)
  • AC Output: 3000W, Pure Sine Wave
  • Charging Methods: AC Adapter / Solar Panel
  • AC Charging Power: Up to 1500W
  • Solar Input: 12–80V DC, Max. 500W (to be confirmed)
  • USB Output: PD100W, QC18W, 5V/2.4A
  • DC Output: 2 × DC5521 (12V/10A)
  • UPS Switching Time: Less than 20ms
  • Display: LCD Display
  • Cooling: Fan Cooling
  • Protection: Overcurrent, Overvoltage, Short Circuit, Over-Discharge & Temperature Protection
  • Dimensions: Approx. 450 × 280 × 360 mm
  • Weight: Approx. 32.8kg
  • Applications: Home Backup, Camping, Outdoor Activities, Mobile Work & Emergency Power
  • Customization: Logo, Housing, Color, Packaging, Socket & Output Configuration
  • Certifications: CE, FCC, RoHS, UL, PSE, UN38.3, MSDS & ISO 9001 (availability subject to confirmation)
  • Supply Options: Ready-to-Ship, Private Label & OEM Customization
Request a quote
Categories: ,

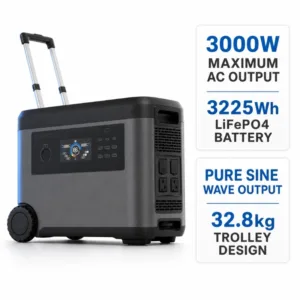

3000W Pure Sine Wave & 3232Wh LiFePO4 Battery

  • This high-power station adopts 51.2V LiFePO4 battery with 3232Wh capacity and 3000W pure sine wave AC output.
  • Built-in MPPT solar charging supports PV input, paired with 1500W fast AC charging for home backup & off-grid use.
  • Note: Confirm the rated power of your appliances to avoid overload and ensure stable operation.

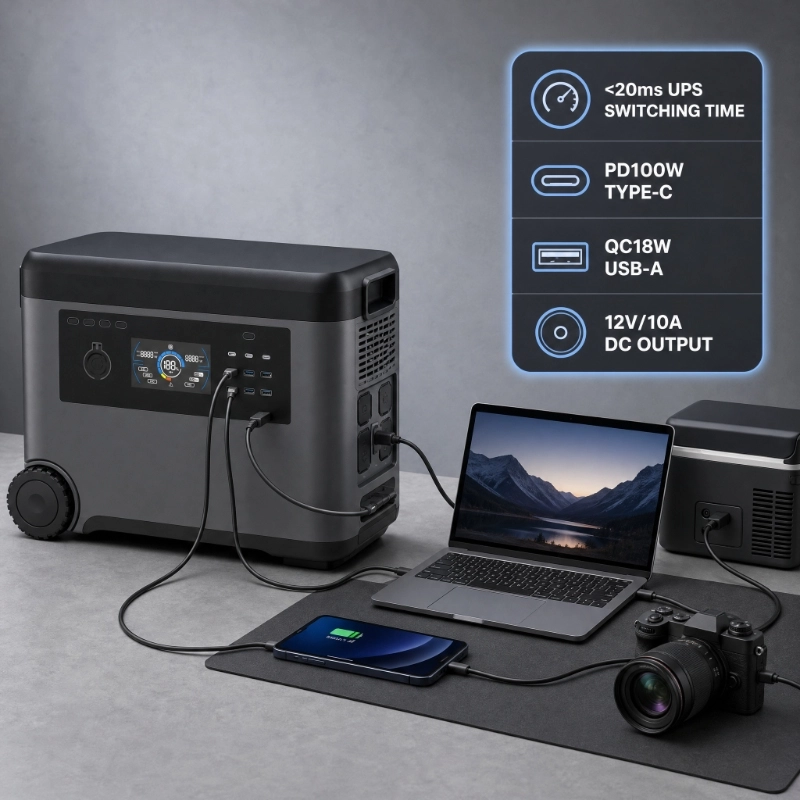

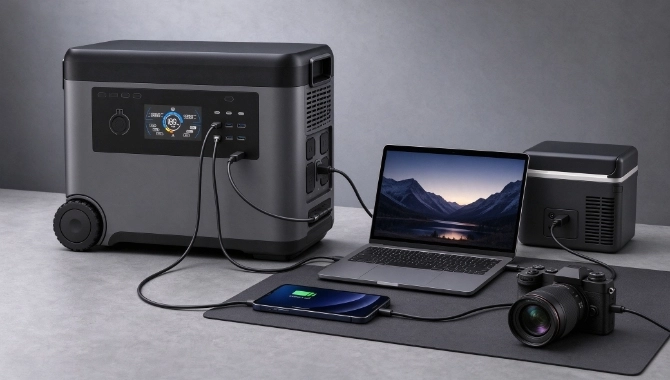

Rich Output Ports & UPS Emergency Power Supply

  • Diversified outputs including PD100W Type‑C, QC18W USB‑A and dual DC5521 ports for multi-device power supply.
  • UPS function with transfer time under 20ms; LCD screen displays real-time power, frequency and battery status.
  • Multiple charging methods: AC adapter, solar PV and DC input to meet different energy replenishment needs.

Rich Output Ports & UPS Emergency Power Supply

  • Intelligent BMS system provides short-circuit, overcurrent, overvoltage and temperature protection for reliable safety.
  • 32.8kg wheeled design for easy moving, fan cooling and wide temperature range for long stable working.
  • Multiple socket standards available; OEM, private label and customized packaging services are supported.
